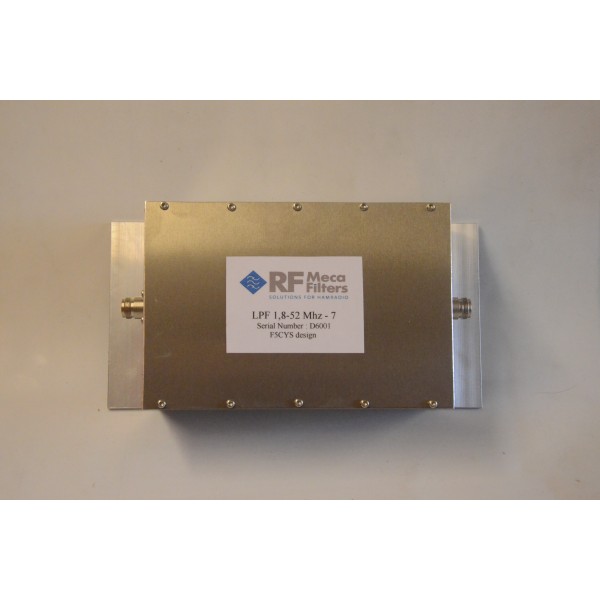

LPF 1.8-52 Mhz - 7 Agrandir

LPF 1.8-52 Mhz - 7

LPF 1.8-52 Mhz - 7    Frequency : 1.8 - 52 Mhz

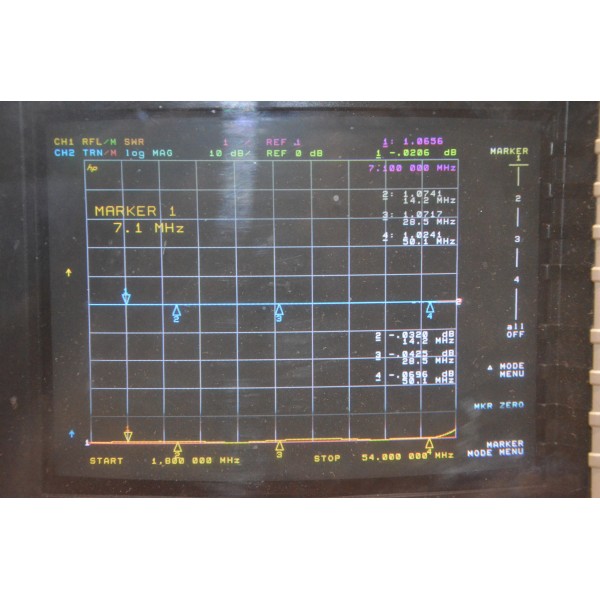

     Return Loss :typical = -30 dB ( -17 dB at 52 Mhz)
     Insertion Loss : -0.18 dB
     Rejection/attenuation: H2 = -49 dB / H3 = - 72 dB
     Swr : 1/1.1 typical (1/1.3 at 52 Mhz)
     Power input : 2500 W CW

     Dimension : 210*140*82 mm
    Weights : 2.1 Kg / 4.6 lbs
    Connectors : SO239 or N

Plus de détails

3 pièces disponibles

134,00 €

LPF 1.8-52 Mhz - 7    Frequency : 1.8 - 52 Mhz
     Return Loss :typical = -30 dB ( -17 dB at 52 Mhz)
     Insertion Loss : -0.18 dB
     Rejection/attenuation: H2 = -49 dB / H3 = - 72 dB
     Swr : 1/1.1 typical (1/1.3 at 52 Mhz)
     Power input : 2500 W CW

     Dimension : 210*140*82 mm
    Weights : 2.1 Kg / 4.6 lbs
    Connectors : SO239 or N
